Native Video Ad

info

Outstream ads are supported starting from NAMSDK version 6.2.0.

info

Starting from NAMSDK version 7.3.0, you can choose the UI for Outstream ads.

Native Integration Guide

Outstream is a Native Normal type ad. For the Native Normal integration guide, please refer to the link.

Outstream Player UI

Outstream ads display video within a MediaView.

To configure the control UI for Outstream, refer to the GFPVideoOptions viewType guide. If you want to build a custom control UI per publisher, refer to the useCustomControlView guide.

Outstream API

enableMediaBackgroundBlur

Sets whether to apply a blur effect to the margin area of the native ad media view. (Default: NO) The blur is applied only when a thumbnail image is available. If no thumbnail exists, a black background is displayed instead.

Swift

let nativeOptions = GFPAdNativeOptions()

let renderingSetting = GFPNativeAdRenderingSetting()
renderingSetting.enableMediaBackgroundBlur = false
renderingSetting.enableMediaBackgroundBlur = true

nativeOptions.renderingSetting = renderingSetting

Objective-C

GFPAdNativeOptions *nativeOptions = [[GFPAdNativeOptions alloc] init];

GFPNativeAdRenderingSetting *renderingSetting = [[GFPNativeAdRenderingSetting alloc] init];
renderingSetting.enableMediaBackgroundBlur = NO;
renderingSetting.enableMediaBackgroundBlur = YES;

nativeOptions.renderingSetting = renderingSetting;

GFPVideoOptions

Use GFPVideoOptions to configure the playback policy, whether to use a custom control view, and the maximum video quality for Outstream ads.

GFPVideoOptions is passed by setting it on the adLoader's nativeOptions.

Swift

let nativeOptions = GFPAdNativeOptions()

let videoOption = GFPVideoOptions(playPolicy: .autoPlay, useCustomControlView: false)

nativeOptions.videoOptions = videoOption

Objective-C

GFPAdNativeOptions *nativeOptions = [[GFPAdNativeOptions alloc] init];

GFPVideoOptions *videoOption = [[GFPVideoOptions alloc] initWithPlayPolicy:GFPVideoPlayPolicyAutoPlay useCustomControlView:NO];

nativeOptions.videoOptions = videoOption;

GFPVideoPlayPolicy

Sets the playback policy for the ad video. (Default: Auto)

• Auto: The SDK controls video playback directly. The video plays to the end when the network is WiFi or Cellular.
• Auto Only WiFi: The SDK controls video playback directly. The video plays to the end only when the network is WiFi. On Cellular, playback stops after n seconds.
• Manual: The service controls video playback. When the ad is displayed, the video appears in a paused state, and the service determines when to begin playback.

Swift

let videoOption = GFPVideoOptions(playPolicy: .autoPlay, useCustomControlView: false)

let videoOption = GFPVideoOptions(playPolicy: .autoPlayOnlyWiFi, useCustomControlView: false)

let videoOption = GFPVideoOptions(playPolicy: .manual, useCustomControlView: false)

Objective-C

GFPVideoOptions *videoOption = [[GFPVideoOptions alloc] initWithPlayPolicy:GFPVideoPlayPolicyAutoPlay useCustomControlView:NO];

GFPVideoOptions *videoOption = [[GFPVideoOptions alloc] initWithPlayPolicy:GFPVideoPlayPolicyAutoPlayOnlyWiFi useCustomControlView:NO];

GFPVideoOptions *videoOption = [[GFPVideoOptions alloc] initWithPlayPolicy:GFPVideoPlayPolicyManual useCustomControlView:NO];

useCustomControlView

Sets whether to use a custom control view for the ad video. (Default: NO) When set to YES, the player's control elements are hidden. When set to NO, the SDK renders the control elements internally.

Swift

let videoOption = GFPVideoOptions(playPolicy: .autoPlay, useCustomControlView: false)

let videoOption = GFPVideoOptions(playPolicy: .autoPlay, useCustomControlView: true)

Objective-C

GFPVideoOptions *videoOption = [[GFPVideoOptions alloc] initWithPlayPolicy:GFPVideoPlayPolicyAutoPlay useCustomControlView:NO];

GFPVideoOptions *videoOption = [[GFPVideoOptions alloc] initWithPlayPolicy:GFPVideoPlayPolicyAutoPlay useCustomControlView:YES];

shouldHideThumbnailAfterAd (since 8.22.1)

Sets whether to hide the thumbnail after the ad video completes. (Default: NO) When set to YES, the thumbnail is hidden after the ad completes. Set this value before requesting the ad.

Swift

let videoOption = GFPVideoOptions(playPolicy: .autoPlay, useCustomControlView: true)
videoOption.shouldHideThumbnailAfterAd = true

Objective-C

GFPVideoOptions *videoOption = [[GFPVideoOptions alloc] initWithPlayPolicy:GFPVideoPlayPolicyAutoPlay
                                                     useCustomControlView:YES];
videoOption.shouldHideThumbnailAfterAd = YES;

maxBitrateKbps

Sets the maximum bitrate for the ad video. (Default: 800, unit: kbps)

Swift

videoOption.maxBitrateKbps = 800

Objective-C

videoOption.maxBitrateKbps = 800;

viewType (since 7.3.0)

viewType	description

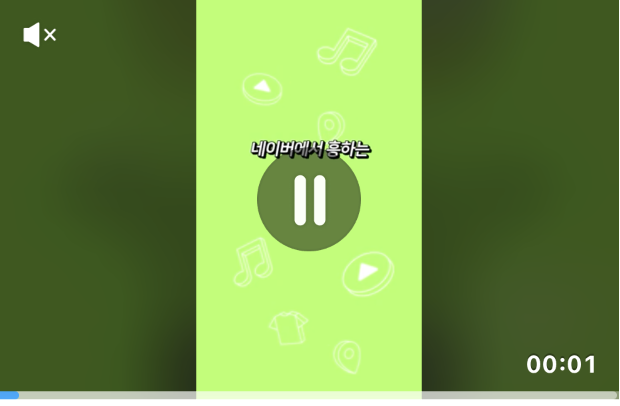

Default	Tapping the video screen shows control buttons.

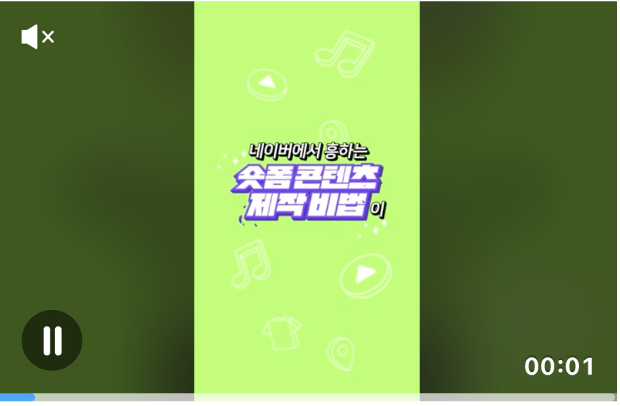

Landing	Tapping the video screen navigates to the advertiser's site.

Swift

let videoOptions = GFPVideoOptions(playPolicy: .autoPlay, viewType: .default)

let videoOptions = GFPVideoOptions(playPolicy: .autoPlay, viewType: .landing)

Objective-C

GFPVideoOptions *videoOptions = [[GFPVideoOptions alloc] initWithPlayPolicy: GFPVideoPlayPolicyAutoPlay viewType: GFPVideoViewTypeDefault];

GFPVideoOptions *videoOptions = [[GFPVideoOptions alloc] initWithPlayPolicy: GFPVideoPlayPolicyAutoPlay viewType: GFPVideoViewTypeLanding];

GFPMediaData

Native Normal type ads are delivered via adLoader:didReceiveNativeAd:. For more details on GFPAdLoaderDelegate, refer to the link.

You can retrieve information rendered in the MediaView through nativeAd.mediaData.

info

With native ad Lazy Loading, you can use nativeAd.mediaData at the first ad load callback to size the media area. It exposes preferredMediaWidth, preferredMediaHeight, and preferredHeightWithFixedWidth(_:) — treat them as valid only when preferredMediaWidth and preferredMediaHeight are greater than 0.

The outstream video resource only loads once the ad view is attached to the view hierarchy, so access mediaData.videoController after the main media has loaded, not at the first ad load callback. With Lazy Loading, the SDK sends the valid-impression (sc/12) report after the main media loads successfully.

Swift

let mediaData = nativeAd.mediaData

Objective-C

GFPMediaData *mediaData = nativeAd.mediaData;

mediaType

You can identify the ad type through mediaType.

• GFPMediaTypeImage: Image type
• GFPMediaTypeVideo: Video type
• GFPMediaTypeRichMedia: Rich media type such as special DA at the bottom of search results
• GFPMediaTypeUnknown: Ads served via C2S through Google, Meta, InMobi, etc.

Swift

let mediaType = nativeAd.mediaData.mediaType

Objective-C

GFPMediaType mediaType = nativeAd.mediaData.mediaType;

aspectRatio

Provides the aspect ratio of the media. Returns -1 if the data is not available.

Swift

let aspectRatio = nativeAd.mediaData.aspectRatio

Objective-C

CGFloat aspectRatio = nativeAd.mediaData.aspectRatio;

videoController

Returned only when mediaType is Video. Returns nil if the data is not available.

Swift

let videoController = nativeAd.mediaData.videoController

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;

GFPVideoController

Through videoController, you can obtain information such as progressInfo and isMuted, and control video playback including mute/play/pause/stop.

progressInfo

Provides the duration, currentTime, and bufferedTime of the ad video.

Swift

let videoController = nativeAd.mediaData.videoController

let progressInfo = videoController.progressInfo

let duration = progressInfo.duration
let currentTime = progressInfo.currentTime
let bufferedTime = progressInfo.bufferedTime

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;

GFPVideoProgressInfo *progressInfo = videoController.progressInfo;

NSTimeInterval duration = progressInfo.duration;
NSTimeInterval currentTime = progressInfo.currentTime;
NSTimeInterval bufferedTime = progressInfo.bufferedTime;

isPlaying

Indicates whether the ad video is currently playing.

Swift

let videoController = nativeAd.mediaData.videoController

let isPlaying = videoController.isPlaying

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;

BOOL isPlaying = videoController.isPlaying;

enableControl

Indicates whether control of the ad video is available. enableControl is related to GFPVideoPlayPolicy.

• When the playPolicy of videoOptions is Manual: enableControl returns YES.
• When the playPolicy of videoOptions is not Manual: enableControl returns NO.

Swift

let videoController = nativeAd.mediaData.videoController

let enableControl = videoController.enableControl

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;

BOOL enableControl = videoController.enableControl;

preferredForwardBufferDuration

Sets the preferredForwardBufferDuration for the ad video.

Swift

let videoController = nativeAd.mediaData.videoController
videoController.preferredForwardBufferDuration = 0

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;
videoController.preferredForwardBufferDuration = 0;

mute

Sets the mute state of the ad video. The mute state can be queried via isMuted.

Swift

let videoController = nativeAd.mediaData.videoController

videoController.mute = true
videoController.mute = false

let isMute = videoController.isMuted

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;

[videoController setMute: YES];
[videoController setMute: NO];

BOOL isMute = videoController.isMuted;

play

Plays the ad video. Only works when enableControl is YES.

Swift

let videoController = nativeAd.mediaData.videoController
videoController.play()

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;
[videoController play];

pause

Pauses the ad video. Only works when enableControl is YES.

Swift

let videoController = nativeAd.mediaData.videoController
videoController.pause()

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;
[videoController pause];

stop

Stops the ad video and resets it to the beginning. Only works when enableControl is YES.

Swift

let videoController = nativeAd.mediaData.videoController
videoController.stop()

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;
[videoController stop];

seek: (since 8.21.0)

Moves the ad video to a specific playback position. progress is passed as a value between 0.0 (start) and 1.0 (end). Only works when enableControl is YES.

Swift

let videoController = nativeAd.mediaData.videoController
videoController.seek(0.5) // Move to the 50% point of the video

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;
[videoController seek:0.5f]; // Move to the 50% point of the video

GFPVideoEventDelegate

Can be set via the videoController's delegate to receive events for the ad video.

Swift

let videoController = nativeAd.mediaData.videoController
videoController.delegate = self

Objective-C

GFPVideoController *videoController = nativeAd.mediaData.videoController;
videoController.delegate = self;

adPlayerDidPlay:

Called when the ad video starts playing.

Swift

func adPlayerDidPlay(_ videoController: GFPVideoController) {

}

Objective-C

- (void)adPlayerDidPlay:(GFPVideoController *)videoController {

}

adPlayerDidPause:

Called when the ad video is paused.

Swift

func adPlayerDidPause(_ videoController: GFPVideoController) {

}

Objective-C

- (void)adPlayerDidPause:(GFPVideoController *)videoController {

}

adPlayerDidComplete:

Called when the ad video finishes playing.

Swift

func adPlayerDidComplete(_ videoController: GFPVideoController) {

}

Objective-C

- (void)adPlayerDidComplete:(GFPVideoController *)videoController {

}

adPlayerDidChangeMuteState:

Called when the mute state of the ad video player changes.

Swift

func adPlayerDidChangeMuteState(_ videoController: GFPVideoController) {

}

Objective-C

- (void)adPlayerDidChangeMuteState:(GFPVideoController *)videoController {

}

adPlayer:didChangeCurrentTime:

Called when the current playback progress of the ad video changes.

Swift

func adPlayer(_ videoController: GFPVideoController, didChangeCurrentTime currentTime: TimeInterval) {

}

Objective-C

- (void)adPlayer:(GFPVideoController *)videoController didChangeCurrentTime:(NSTimeInterval)currentTime {

}

adPlayer:didChangeBufferedTime:

Called when the buffered progress of the ad video changes.

Swift

func adPlayer(_ videoController: GFPVideoController, didChangeBufferedTime bufferedTime: TimeInterval) {

}

Objective-C

- (void)adPlayer:(GFPVideoController *)videoController didChangeBufferedTime:(NSTimeInterval)bufferedTime {

}

adPlayer:didTappedControlButton:

(Optional) Called when a control button in the native ad video is tapped. This is called when using the default controlView provided by the SDK, and is not called when using a customControlView.

Swift

func adPlayer(_ videoController: GFPVideoController, didTappedControlButton buttonType: GFPControlButtonType) {

}

Objective-C

- (void)adPlayer:(GFPVideoController *)videoController didTappedControlButton:(GFPControlButtonType)buttonType {

}
